Technobel Extra Flexible Hose (50mt coils)

Technobel Extra Flexible Hose (50mt coils)

Four layer thermoplastic design, with an inner polyuretahene wall, Reinforcement formed of a high resistant polyester fibre textile braiding.



APPLICATIONS
 Transfer of petrols, oils and fuels, and certain solvents
Transfer of moderately abrasive products,
powders and granules
Agricultural spraying (insecticides, pesticides, weed killers, etc)
Agro-chemical industry

SECTORS OF ACTIVITY
 Industry in general
Agriculture

ACCORDS
Quick connectors, barbed or serrated connectors. Band, worm drive, screw or butterfly clamps. Cap connectors.
Rigid plastic barbed connectors with clip clamps. Swaged fittings can be used if they do not damage the hose.

ADVANTAGES
The inner polyurethane layer, associated with specially formulated PVC compounds, provide excellent resistance to oils, hydrocarbons and numerous organic solvents. Moreover, the outer layer (black) provides good chemical resistance to hydrocarbons and solvent charged mist created by spraying. Finally, as the polyurethane is very resistant to abrasion and scratches (5 times greater resistance than PVC), mechanically aggressive products can also be transported by TECHNOBEL® PU hose (powders, granules, liquid mixtures…).

Four layer thermoplastic design, with an inner polyuretahene wall, Reinforcement formed of a high resistant polyester fibre textile braiding.



APPLICATIONS
 Transfer of petrols, oils and fuels, and certain solvents
Transfer of moderately abrasive products,
powders and granules
Agricultural spraying (insecticides, pesticides, weed killers, etc)
Agro-chemical industry

SECTORS OF ACTIVITY
 Industry in general
Agriculture

ACCORDS
Quick connectors, barbed or serrated connectors. Band, worm drive, screw or butterfly clamps. Cap connectors.
Rigid plastic barbed connectors with clip clamps. Swaged fittings can be used if they do not damage the hose.

ADVANTAGES
The inner polyurethane layer, associated with specially formulated PVC compounds, provide excellent resistance to oils, hydrocarbons and numerous organic solvents. Moreover, the outer layer (black) provides good chemical resistance to hydrocarbons and solvent charged mist created by spraying. Finally, as the polyurethane is very resistant to abrasion and scratches (5 times greater resistance than PVC), mechanically aggressive products can also be transported by TECHNOBEL® PU hose (powders, granules, liquid mixtures…).

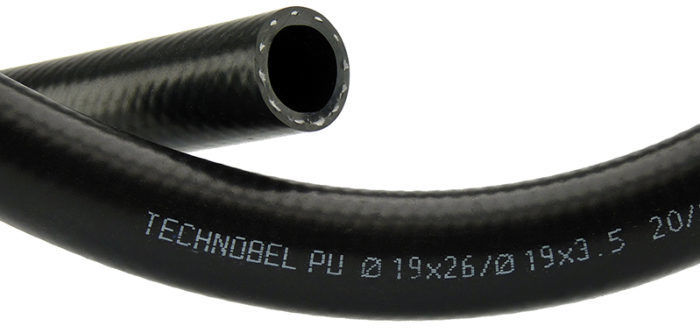

Picture of 3/4" (19mm) ID x 26mm OD - Technobel Extra Flexible Hose (50mt coils)
3/4" (19mm) ID x 26mm OD - Technobel Extra Flexible Hose (50mt coils)
3/4" (19mm) ID x 26mm OD - Technobel Extra Flexible Hose (50mt coils)
Availability: In stock
SKU: 110192-TECHNOBEL-PU-NOIR
Delivery date: 1-2 days
Picture of 1" (25mm) ID x 33mm OD Technobel Extra Flexible Hose (50mt coils)
1" (25mm) ID x 33mm OD Technobel Extra Flexible Hose (50mt coils)
1" (25mm) ID x 33mm OD Technobel Extra Flexible Hose (50mt coils)
Availability: In stock
SKU: 110252-TECHNOBEL-PU-NOIR
Delivery date: 1-2 days
