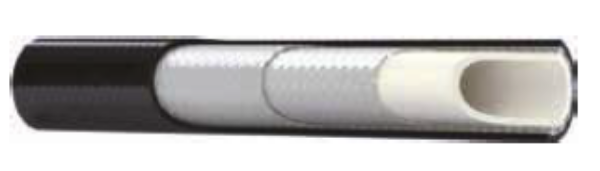

FLEXOR 7 8G1LA

FLEXOR 7 Polyester Thermoplastic Hydraulic Hose – EN 855 R7 -40°C +100°C 8G1LA
Manufacturer: ALFAGOMMA

Tube: polyester.
Reinforcement: one/two high tensile textile braids.
Cover: abrasion, ozone and hydrocarbon resistant polyurethane, pin-pricked.
Application: high-pressure hydraulic lines, fuel oil, antifreeze solutions, air and water.
Constant operation: -40 °C +100 °C (-40 °F +212 °F)
air max T = +70 °C (+160 °F)
Length: random

Note: Prices shown are net excluding VAT and carriage. Prices per meter. Prices and product availability are subject to change without notice. Lengths, further diameters and colours on request. TEC Industrial also supplies this hose with fittings already assembled.

Tube: polyester.
Reinforcement: one/two high tensile textile braids.
Cover: abrasion, ozone and hydrocarbon resistant polyurethane, pin-pricked.
Application: high-pressure hydraulic lines, fuel oil, antifreeze solutions, air and water.
Constant operation: -40 °C +100 °C (-40 °F +212 °F)
air max T = +70 °C (+160 °F)
Length: random

Note: Prices shown are net excluding VAT and carriage. Prices per meter. Prices and product availability are subject to change without notice. Lengths, further diameters and colours on request. TEC Industrial also supplies this hose with fittings already assembled.

Products specifications
SKIVE OPTIONS NO SKIVE
Operating Pressure High-Pressure
Product Files
Data Sheet
Crimping Chart
Picture of 1/4" (6mm) ID X 12.2mm OD FLEXOR 7
1/4" (6mm) ID X 12.2mm OD FLEXOR 7
1/4" (6mm) ID X 12.2mm OD FLEXOR 7 Polyester Thermoplastic Hydraulic Hose SAE 100 R7 – EN 855 R7 -40°C +100°C 210bar WP 840bar BP 8G1LA
Availability: In stock
SKU: 8G1LA-04
Manufacturer part number: 1000291
Delivery date: 1-2 days
€3.83 excl tax
excluding shipping
Picture of 5/16" (8mm) ID X 14.30mm OD FLEXOR 7
5/16" (8mm) ID X 14.30mm OD FLEXOR 7
5/16" (8mm) ID X 14.30mm OD FLEXOR 7 Polyester Thermoplastic Hydraulic Hose – EN 855 R7 -40°C +100°C 190bar WP 760bar BP 8G1LA
Availability: Out of Stock - on backorder and will be dispatched once in stock.
SKU: 8G1LA-05
Manufacturer part number: 1000292
Delivery date: 3-5 days
€5.35 excl tax
excluding shipping
Picture of 3/8" (10mm) ID X 16mm OD FLEXOR 7
3/8" (10mm) ID X 16mm OD FLEXOR 7
3/8" (10mm) ID X 16mm OD FLEXOR Polyester Thermoplastic Hydraulic Hose – EN 855 R7 -40°C +100°C 160bar WP 640bar BP 8G1LA
Availability: In stock
SKU: 8G1LA-06
Manufacturer part number: 1000293
Delivery date: 1-2 days
€5.79 excl tax
excluding shipping
Picture of 1/2" (13mm) ID X 20.3mm OD FLEXOR 7
1/2" (13mm) ID X 20.3mm OD FLEXOR 7
1/2" (13mm) ID X 20.3mm OD FLEXOR 7 Polyester Thermoplastic Hydraulic Hose – EN 855 R7 -40°C +100°C 140bar WP 560bar BP 8G1LA
Availability: Out of Stock - on backorder and will be dispatched once in stock.
SKU: 8G1LA-08
Manufacturer part number: 1000294
Delivery date: 3-5 days
€8.39 excl tax
excluding shipping
Products specifications
SKIVE OPTIONS NO SKIVE
Operating Pressure High-Pressure
