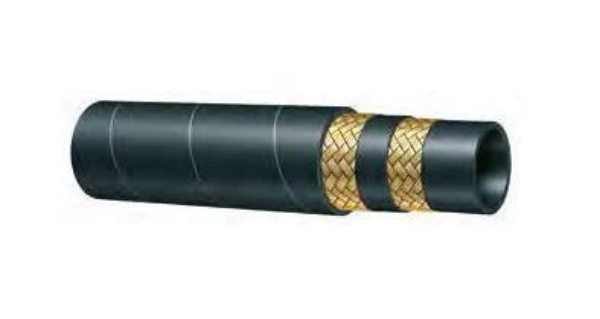

8Z7AA Flexor 2SN/R2AT Rubber Wire Braid Hydraulic Hose

8Z7AA Flexor 2SN/R2AT Rubber Wire Braid Hydraulic Hose is designed for high-pressure hydraulic lines, fuel oil, antifreeze solutions, air, and water applications.
Manufacturer: ALFAGOMMA

8Z7AA Flexor 2SN/R2AT Rubber Wire Braid Hydraulic Hose


Tube
: oil resistant synthetic rubber.
Reinforcement: two high tensile steel braids.
Cover: abrasion, ozone and hydrocarbon resistant synthetic rubber.
MSHA APPROVED
Application: high pressure hydraulic lines, fuel oil, antifreeze solutions, air and water.
Constant operation: -40 °C +100 °C (-40 °F +212 °F)
air max T = +70 °C (+160 °F)
Safety factor: 1:4
Length: random up to 1” - 61 m max over 1”1/4

Note: Prices shown are net excluding VAT and carriage. Prices per meter. Prices and product availability are subject to change without notice. Lengths, further diameters and colours on request. TEC Industrial also supplies this hose with fittings already assembled.

8Z7AA Flexor 2SN/R2AT Rubber Wire Braid Hydraulic Hose


Tube
: oil resistant synthetic rubber.
Reinforcement: two high tensile steel braids.
Cover: abrasion, ozone and hydrocarbon resistant synthetic rubber.
MSHA APPROVED
Application: high pressure hydraulic lines, fuel oil, antifreeze solutions, air and water.
Constant operation: -40 °C +100 °C (-40 °F +212 °F)
air max T = +70 °C (+160 °F)
Safety factor: 1:4
Length: random up to 1” - 61 m max over 1”1/4

Note: Prices shown are net excluding VAT and carriage. Prices per meter. Prices and product availability are subject to change without notice. Lengths, further diameters and colours on request. TEC Industrial also supplies this hose with fittings already assembled.

Products specifications
SKIVE OPTIONSNO SKIVE, SKIVE, SKIVE AND NO SKIVE
Operating PressureHigh-Pressure
Picture of 1/4" (6mm) ID X 14.2mm OD FLEXOR 2SN/R2AT MINETUFF
1/4" (6mm) ID X 14.2mm OD FLEXOR 2SN/R2AT MINETUFF
1/4" (6mm) ID X 14.2mm OD FLEXOR 2SN/R2AT - MINETUFF Rubber Wire Braid Hydraulic Hose ISO 1436-1 SAE 100 R2AT EN 853 2SN 400bar WP 1600bar BP -40°C +100°C 8Z7AA
Availability: In stock
SKU: 8Z7AA-04
€7.83
Picture of 5/16" (8mm) ID X 15.8mm OD FLEXOR 2SN/R2AT - MINETUFF
5/16" (8mm) ID X 15.8mm OD FLEXOR 2SN/R2AT - MINETUFF
5/16" (8mm) ID X 15.8mm OD FLEXOR 2SN/R2AT - MINETUFF Rubber Wire Braid Hydraulic Hose ISO 1436-1 SAE 100 R2AT EN 853 2SN 350bar WP 1400bar BP -40°C +100°C 8Z7AA
Availability: In stock
SKU: 8Z7AA-05
€10.88
Picture of 3/8" (10mm) ID X 18.2mm OD FLEXOR 2SN/R2AT MINETUFF
3/8" (10mm) ID X 18.2mm OD FLEXOR 2SN/R2AT MINETUFF
3/8" (10mm) ID X 18.2mm OD FLEXOR 2SN/R2AT - MINETUFF Rubber Wire Braid Hydraulic Hose ISO 1436-1 SAE 100 R2AT EN 853 2SN 330bar WP 1320bar BP -40°C +100°C 8Z7AA
Availability: In stock
SKU: 8Z7AA-06
€8.77
Picture of 1/2" (13mm) ID X 21.3mm OD FLEXOR 2SN/R2AT MINETUFF
1/2" (13mm) ID X 21.3mm OD FLEXOR 2SN/R2AT MINETUFF
1/2" (13mm) ID X 21.3mm OD FLEXOR 2SN/R2AT - MINETUFF Rubber Wire Braid Hydraulic Hose ISO 1436-1 SAE 100 R2AT EN 853 2SN 275bar WP 860bar BP -40°C +100°C 8Z7AA
Availability: In stock
SKU: 8Z7AA-08
€9.98
Picture of 5/8" (16mm) ID X 24.5mm OD FLEXOR 2SN/R2AT MINETUFF
5/8" (16mm) ID X 24.5mm OD FLEXOR 2SN/R2AT MINETUFF
5/8" (16mm) ID X 24.5mm OD FLEXOR 2SN/R2AT - MINETUFF Rubber Wire Braid Hydraulic Hose ISO 1436-1 SAE 100 R2AT EN 853 2SN 250bar WP 1000bar BP -40°C +100°C 8Z7AA
Availability: In stock
SKU: 8Z7AA-10
€12.24
Picture of 3/4" (19mm) ID X 28.6mm OD FLEXOR 2SN/R2AT MINETUFF
3/4" (19mm) ID X 28.6mm OD FLEXOR 2SN/R2AT MINETUFF
3/4" (19mm) ID X 28.6mm OD FLEXOR 2SN/R2AT - MINETUFF Rubber Wire Braid Hydraulic Hose ISO 1436-1 SAE 100 R2AT EN 853 2SN 215bar WP 860bar BP -40°C +100°C 8Z7AA
Availability: In stock
SKU: 8Z7AA-12
€14.56
Picture of 1" (25mm) ID X 36.6mm OD FLEXOR 2SN/R2AT MINETUFF
1" (25mm) ID X 36.6mm OD FLEXOR 2SN/R2AT MINETUFF
1" (25mm) ID X 36.6mm OD FLEXOR 2SN/R2AT - MINETUFF Rubber Wire Braid Hydraulic Hose ISO 1436-1 SAE 100 R2AT EN 853 2SN 165bar WP 660bar BP -40°C +100°C 8Z7AA
Availability: In stock
SKU: 8Z7AA-16
€22.05
Picture of 1 1/4" (32mm) ID X 46mm OD FLEXOR 2SN/R2AT MINETUFF
1 1/4" (32mm) ID X 46mm OD FLEXOR 2SN/R2AT MINETUFF
1 1/4" (32mm) ID X 46mm OD FLEXOR 2SN/R2AT - MINETUFF Rubber Wire Braid Hydraulic Hose ISO 1436-1 SAE 100 R2AT EN 853 2SN 125bar WP 500bar BP -40°C +100°C 8Z7AA
Availability: In stock
SKU: 8Z7AA-20
€45.70
Picture of 1 1/2" (38mm) ID X 52.8mm OD FLEXOR 2SN/R2AT MINETUFF
1 1/2" (38mm) ID X 52.8mm OD FLEXOR 2SN/R2AT MINETUFF
1 1/2" (38mm) ID X 52.8mm OD FLEXOR 2SN/R2AT - MINETUFF Rubber Wire Braid Hydraulic Hose ISO 1436-1 SAE 100 R2AT EN 853 2SN 90bar WP 360bar BP -40°C +100°C 8Z7AA
Availability: In stock
SKU: 8Z7AA-24
€59.09
Picture of 2" (51mm) ID X 65.6mm OD FLEXOR 2SN/R2AT MINETUFF
2" (51mm) ID X 65.6mm OD FLEXOR 2SN/R2AT MINETUFF
2" (51mm) ID X 65.6mm OD FLEXOR 2SN/R2AT - MINETUFF Rubber Wire Braid Hydraulic Hose ISO 1436-1 SAE 100 R2AT EN 853 2SN 80bar WP 320bar BP -40°C +100°C 8Z7AA
Availability: In stock
SKU: 8Z7AA-32
Delivery date (when in stock): 1 week
€72.31
Products specifications
SKIVE OPTIONSNO SKIVE, SKIVE, SKIVE AND NO SKIVE
Operating PressureHigh-Pressure
