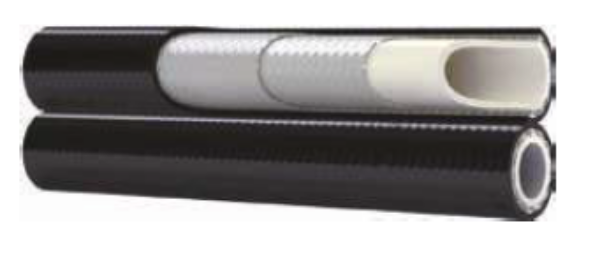

8G0LA Flexor 7 Twin Thermoplastic Hydraulic Hose

8G0LA Flexor 7 Twin Thermoplastic Hydraulic Hose is designed for high-pressure hydraulic lines, fuel oil, antifreeze solutions, air, and water applications
Manufacturer: ALFAGOMMA

8G0LA Flexor 7 Thermoplastic Hydraulic Hose Twin

Tube: polyester.
Reinforcement: one/two high tensile textile braids.
Cover: abrasion, ozone and hydrocarbon resistant polyurethane, pin-pricked.
Application: high-pressure hydraulic lines, fuel oil, antifreeze solutions, air and water.
Constant operation: -40 °C +100 °C (-40 °F +212 °F)
air max T = +70 °C (+160 °F)
Safety factor: 1:4
Length: random

Note: Prices shown are net excluding VAT and carriage. Prices per meter. Prices and product availability are subject to change without notice. Lengths, further diameters and colours on request. TEC Industrial also supplies this hose with fittings already assembled.

8G0LA Flexor 7 Thermoplastic Hydraulic Hose Twin

Tube: polyester.
Reinforcement: one/two high tensile textile braids.
Cover: abrasion, ozone and hydrocarbon resistant polyurethane, pin-pricked.
Application: high-pressure hydraulic lines, fuel oil, antifreeze solutions, air and water.
Constant operation: -40 °C +100 °C (-40 °F +212 °F)
air max T = +70 °C (+160 °F)
Safety factor: 1:4
Length: random

Note: Prices shown are net excluding VAT and carriage. Prices per meter. Prices and product availability are subject to change without notice. Lengths, further diameters and colours on request. TEC Industrial also supplies this hose with fittings already assembled.

Products specifications
SKIVE OPTIONS NO SKIVE
Operating Pressure High-Pressure
Product Files
Data Sheet
Crimping Chart
Picture of 1/4" (6mm) ID X 12.2mm OD FLEXOR 7 – TWIN
1/4" (6mm) ID X 12.2mm OD FLEXOR 7 – TWIN
1/4" (6mm) ID X 12.2mm OD FLEXOR 7 – TWIN Polyester Thermoplastic Hydraulic Hose SAE 100 R7 – EN 855 R7 -40°C +100°C 210bar WP 840bar BP 8G0LA
Availability: Out of Stock - on backorder and will be dispatched once in stock.
SKU: 8G0LA-04
Manufacturer part number: 1000298
Delivery date: 3-5 days
Picture of 5/16" (8mm) ID X 14.30mm OD FLEXOR 7 – TWIN
5/16" (8mm) ID X 14.30mm OD FLEXOR 7 – TWIN
5/16" (8mm) ID X 14.30mm OD FLEXOR 7 – TWIN Polyester Thermoplastic Hydraulic Hose SAE 100 R7 – EN 855 R7 -40°C +100°C 190bar WP 760bar BP 8G0LA
Availability: Out of Stock - on backorder and will be dispatched once in stock.
SKU: 8G0LA-05
Manufacturer part number: 1000299
Delivery date: 3-5 days
Picture of 3/8" (10mm) ID X 16mm OD FLEXOR 7 – TWIN
3/8" (10mm) ID X 16mm OD FLEXOR 7 – TWIN
3/8" (10mm) ID X 16mm OD FLEXOR 7 – TWIN Polyester Thermoplastic Hydraulic Hose SAE 100 R7 – EN 855 R7 -40°C +100°C 160bar WP 640bar BP 8G0LA
Availability: In stock
SKU: 8G0LA-06
Manufacturer part number: 1000300
Delivery date: 3-5 days
Picture of 1/2" (13mm) ID X 20.3mm OD FLEXOR 7 – TWIN
1/2" (13mm) ID X 20.3mm OD FLEXOR 7 – TWIN
1/2" (13mm) ID X 20.3mm OD FLEXOR 7 – TWIN Polyester Thermoplastic Hydraulic Hose SAE 100 R7 – EN 855 R7 -40°C +100°C 140bar WP 560bar BP 8G0LA
Availability: In stock
SKU: 8G0LA-08
Manufacturer part number: 1000301
Delivery date: 3-5 days
Products specifications
SKIVE OPTIONS NO SKIVE
Operating Pressure High-Pressure
