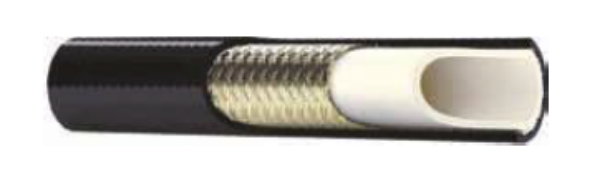

8F0LA Flexor TWB1 Polyester Thermoplastic Hydraulic Hose (One Wire Braided)

8F0LA Flexor TWB1 Polyester Thermoplastic Hydraulic Hose (One Wire Braided) is designed for high-pressure hydraulic lines, fuel oil, antifreeze solutions, air, and water applications.
Manufacturer: ALFAGOMMA

8F0LA Flexor TWB1 Polyester Thermoplastic Hydraulic Hose (One Wire Braided)

Tube: polyester.
Reinforcement: one high tensile steel braid.
Cover: abrasion, ozone, and hydrocarbon resistant polyurethane, non-pin-pricked.
Application: high-pressure hydraulic lines, fuel oil, antifreeze solutions, air, and water.
Constant operation: -40 °C +100 °C (-40 °F +212 °F)
air max T = +70 °C (+160 °F)
Length: random

Note: Prices shown are net excluding VAT and carriage. Prices per meter. Prices and product availability are subject to change without notice. Lengths, further diameters and colours on request. TEC Industrial also supplies this hose with fittings already assembled.

8F0LA Flexor TWB1 Polyester Thermoplastic Hydraulic Hose (One Wire Braided)

Tube: polyester.
Reinforcement: one high tensile steel braid.
Cover: abrasion, ozone, and hydrocarbon resistant polyurethane, non-pin-pricked.
Application: high-pressure hydraulic lines, fuel oil, antifreeze solutions, air, and water.
Constant operation: -40 °C +100 °C (-40 °F +212 °F)
air max T = +70 °C (+160 °F)
Length: random

Note: Prices shown are net excluding VAT and carriage. Prices per meter. Prices and product availability are subject to change without notice. Lengths, further diameters and colours on request. TEC Industrial also supplies this hose with fittings already assembled.

Products specifications
SKIVE OPTIONS NO SKIVE
Operating Pressure High-Pressure
Product Files
Data Sheet
Crimping Chart
Picture of 1/4" (6mm) ID X 11.7mm OD FLEXOR TWB1
1/4" (6mm) ID X 11.7mm OD FLEXOR TWB1
1/4" (6mm) ID X 11.7mm OD FLEXOR TWB1 Polyester Thermoplastic Hydraulic Hose ONE WIRE BRAID 310bar WP 1240bar BP -40°C +100°C 8F0LA
Availability: Out of Stock - on backorder and will be dispatched once in stock.
SKU: 8F0LA-04
Manufacturer part number: 1000283
Delivery date: 3-5 days
Picture of 5/16" (8mm) ID X 13.2mm OD FLEXOR TWB1
5/16" (8mm) ID X 13.2mm OD FLEXOR TWB1
5/16" (8mm) ID X 13.2mm OD FLEXOR TWB1 Polyester Thermoplastic Hydraulic Hose ONE WIRE BRAID 250bar WP 1000bar BP -40°C +100°C 8F0LA
Availability: Out of Stock - on backorder and will be dispatched once in stock.
SKU: 8F0LA-05
Manufacturer part number: 1000284
Delivery date: 3-5 days
Picture of 3/8" (10mm) ID X 15.5mm OD FLEXOR TWB1
3/8" (10mm) ID X 15.5mm OD FLEXOR TWB1
3/8" (10mm) ID X 15.5mm OD FLEXOR TWB1 Polyester Thermoplastic Hydraulic Hose ONE WIRE BRAID 225bar WP 900bar BP -40°C +100°C 8F0LA
Availability: In stock
SKU: 8F0LA-06
Manufacturer part number: 1000285
Delivery date: 1-2 days
Picture of 1/2" (13mm) ID X 18.8mm OD FLEXOR TWB1
1/2" (13mm) ID X 18.8mm OD FLEXOR TWB1
1/2" (13mm) ID X 18.8mm OD FLEXOR TWB1 Polyester Thermoplastic Hydraulic Hose ONE WIRE BRAID 760bar WP 190bar BP -40°C +100°C 8F0LA
Availability: Out of Stock - on backorder and will be dispatched once in stock.
SKU: 8F0LA-08
Manufacturer part number: 1000286
Delivery date: 3-5 days
Products specifications
SKIVE OPTIONS NO SKIVE
Operating Pressure High-Pressure
