814AE Temp Tech 1SN High-Temperature Hydraulic Hose

814AE Temp Tech 1SN Blue Rubber High-Temperature Hydraulic Hose is for high-pressure hydraulic lines, fuel oil, antifreeze solutions, air, and water. Specially designed for high-temperature applications. Not recommended for steam service.
Manufacturer: ALFAGOMMA

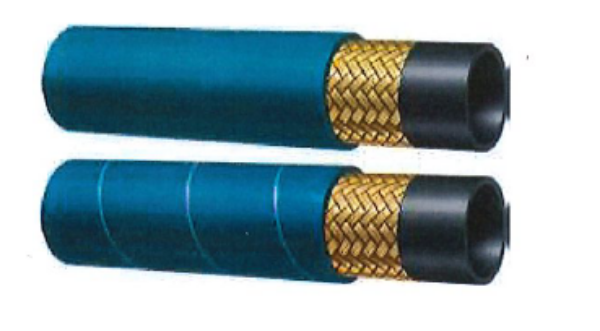

814AE Temp Tech 1SN Rubber High-Temperature Hydraulic Hose

Tube
: oil resistant synthetic rubber.
Reinforcement: one high tensile steel braid.
Cover: abrasion, ozone and hydrocarbon resistant blue synthetic rubber.
MSHA APPROVED
Application: high-pressure hydraulic lines, fuel oil, antifreeze solutions, air and water. Specially designed for high-temperature applications. Not recommended for steam service.
Constant operation: -40 °C +150 °C (-40 °F +300 °F)
air max T = +110 °C (+230 °F)
Length: random up to 1” - 61 m max over 1"1/4

Note: Prices shown are net excluding VAT and carriage. Prices per meter. Prices and product availability are subject to change without notice. Lengths, further diameters and colours on request. TEC Industrial also supplies this hose with fittings already assembled.

814AE Temp Tech 1SN Rubber High-Temperature Hydraulic Hose

Tube
: oil resistant synthetic rubber.
Reinforcement: one high tensile steel braid.
Cover: abrasion, ozone and hydrocarbon resistant blue synthetic rubber.
MSHA APPROVED
Application: high-pressure hydraulic lines, fuel oil, antifreeze solutions, air and water. Specially designed for high-temperature applications. Not recommended for steam service.
Constant operation: -40 °C +150 °C (-40 °F +300 °F)
air max T = +110 °C (+230 °F)
Length: random up to 1” - 61 m max over 1"1/4

Note: Prices shown are net excluding VAT and carriage. Prices per meter. Prices and product availability are subject to change without notice. Lengths, further diameters and colours on request. TEC Industrial also supplies this hose with fittings already assembled.

Products specifications
SKIVE OPTIONS NO SKIVE
SKIVE OPTIONS SKIVE
SKIVE OPTIONS SKIVE AND NO SKIVE
Operating Pressure High-Pressure
Product Files
Data Sheet
Crimping Chart
Picture of 1/4" (6mm) ID X 13.4mm OD TEMP TECH 1SN
1/4" (6mm) ID X 13.4mm OD TEMP TECH 1SN
1/4" (6mm) ID X 13.4mm OD TEMP TECH 1SN Blue Rubber High Temperature Hydraulic Hose ISO 1436-1 – SAE 100 R1AT – EN 853 1SN 225bar WP 900bar BP -40°C +150°C 814AE
Availability: Out of Stock - on backorder and will be dispatched once in stock.
SKU: 814AE-04
Manufacturer part number: 1000556
Delivery date: 1 week
Picture of 3/8" (10mm) ID X 17.4mm OD TEMP TECH 1SN
3/8" (10mm) ID X 17.4mm OD TEMP TECH 1SN
3/8" (10mm) ID X 17.4mm OD TEMP TECH 1SN Blue Rubber High Temperature Hydraulic Hose ISO 1436-1 – SAE 100 R1AT – EN 853 1SN 180bar WP 720bar BP -40°C +150°C 814AE
Availability: In stock
SKU: 814AE-06
Manufacturer part number: 1000332
Delivery date: 1-2 days
Picture of 1/2" (13mm) ID X 20.6mm OD TEMP TECH 1SN
1/2" (13mm) ID X 20.6mm OD TEMP TECH 1SN
1/2" (13mm) ID X 20.6mm OD TEMP TECH 1SN Blue Rubber High Temperature Hydraulic Hose ISO 1436-1 – SAE 100 R1AT – EN 853 1SN 160bar WP 640bar BP -40°C +150°C 814AE
Availability: Out of Stock - on backorder and will be dispatched once in stock.
SKU: 814AE-08
Manufacturer part number: 1000445
Delivery date: 1-2 days
Picture of 5/8" (16mm) ID X 23.7mm OD TEMP TECH 1SN
5/8" (16mm) ID X 23.7mm OD TEMP TECH 1SN
5/8" (16mm) ID X 23.7mm OD TEMP TECH 1SN Blue Rubber High Temperature Hydraulic Hose ISO 1436-1 – SAE 100 R1AT – EN 853 1SN 130bar WP 520bar BP -40°C +150°C 814AE
Availability: In stock
SKU: 814AE-10
Manufacturer part number: 1000360
Delivery date: 1-2 days
Picture of 3/4" (19mm) ID X 27.7mm OD TEMP TECH 1SN
3/4" (19mm) ID X 27.7mm OD TEMP TECH 1SN
3/4" (19mm) ID X 27.7mm OD TEMP TECH 1SN Blue Rubber High Temperature Hydraulic Hose ISO 1436-1 – SAE 100 R1AT – EN 853 1SN 105bar WP 420bar BP -40°C +150°C 814AE
Availability: In stock
SKU: 814AE-12
Manufacturer part number: 1000333
Delivery date: 1-2 days
Picture of 1" (25mm) ID X 35.6mm OD TEMP TECH 1SN
1" (25mm) ID X 35.6mm OD TEMP TECH 1SN
1" (25mm) ID X 35.6mm OD TEMP TECH 1SN Blue Rubber High Temperature Hydraulic Hose ISO 1436-1 – SAE 100 R1AT – EN 853 1SN 88bar WP 352bar BP -40°C +150°C 814AE
Availability: In stock
SKU: 814AE-16
Manufacturer part number: 1000361
Delivery date: 1-2 days
Picture of 1 1/4" (32mm) ID X 43.5mm OD TEMP TECH 1SN
1 1/4" (32mm) ID X 43.5mm OD TEMP TECH 1SN
1 1/4" (32mm) ID X 43.5mm OD TEMP TECH 1SN Blue Rubber High Temperature Hydraulic Hose ISO 1436-1 – SAE 100 R1AT – EN 853 1SN 63bar WP 252bar BP -40°C +150°C 814AE
Availability: In stock
SKU: 814AE-20
Manufacturer part number: 1000563
Delivery date: 1-2 days
Picture of 1 1/2" (38mm) ID X 50.6mm OD TEMP TECH 1SN
1 1/2" (38mm) ID X 50.6mm OD TEMP TECH 1SN
1 1/2" (38mm) ID X 50.6mm OD TEMP TECH 1SN Blue Rubber High Temperature Hydraulic Hose ISO 1436-1 – SAE 100 R1AT – EN 853 1SN 50bar WP 200bar BP -40°C +150°C 814AE
Availability: In stock
SKU: 814AE-24
Manufacturer part number: 1000565
Delivery date: 1-2 days
Picture of 2" (51mm) ID X 64mm OD TEMP TECH 1SN
2" (51mm) ID X 64mm OD TEMP TECH 1SN
2" (51mm) ID X 64mm OD TEMP TECH 1SN Blue Rubber High Temperature Hydraulic Hose ISO 1436-1 – SAE 100 R1AT – EN 853 1SN 40bar WP 160bar BP -40°C +150°C 814AE
Availability: Out of Stock - on backorder and will be dispatched once in stock.
SKU: 814AE-32
Manufacturer part number: 1001554
Delivery date: 1 week
Products specifications
SKIVE OPTIONS NO SKIVE
SKIVE OPTIONS SKIVE
SKIVE OPTIONS SKIVE AND NO SKIVE
Operating Pressure High-Pressure
